The Strata™ was developed specifically for stanchion retrofit applications in the oil and gas, heavy industrial, or mining industries, and is a single luminaire complete with an Andromeda™ LED head and pole body which houses the driver. Certified Class I Div 2 for North America, the Strata™ is a unique solution allowing for faster retrofit in these applications, significantly reducing changeover and forward maintenance costs. The Strata™ is a proven, cost effective and robust solution for all stanchion applications in Canada, the US and abroad.

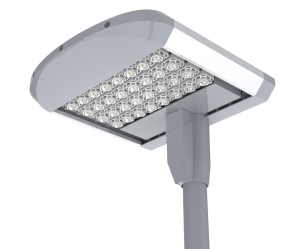

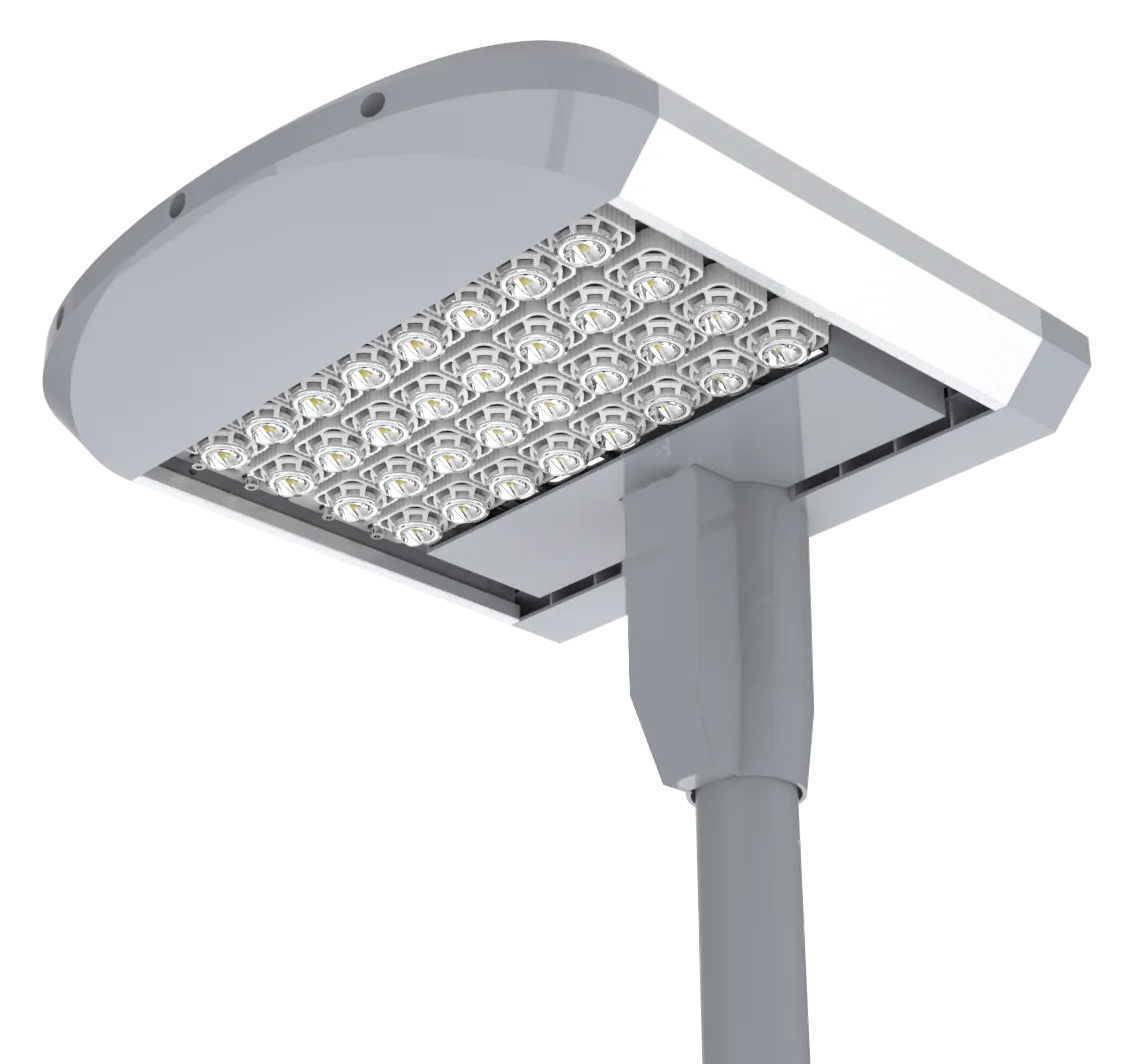

Render of the Strata luminaire head mounted on its pole, seen from the front — a rectangular array of individually lensed LEDs under a curved shroud — Front

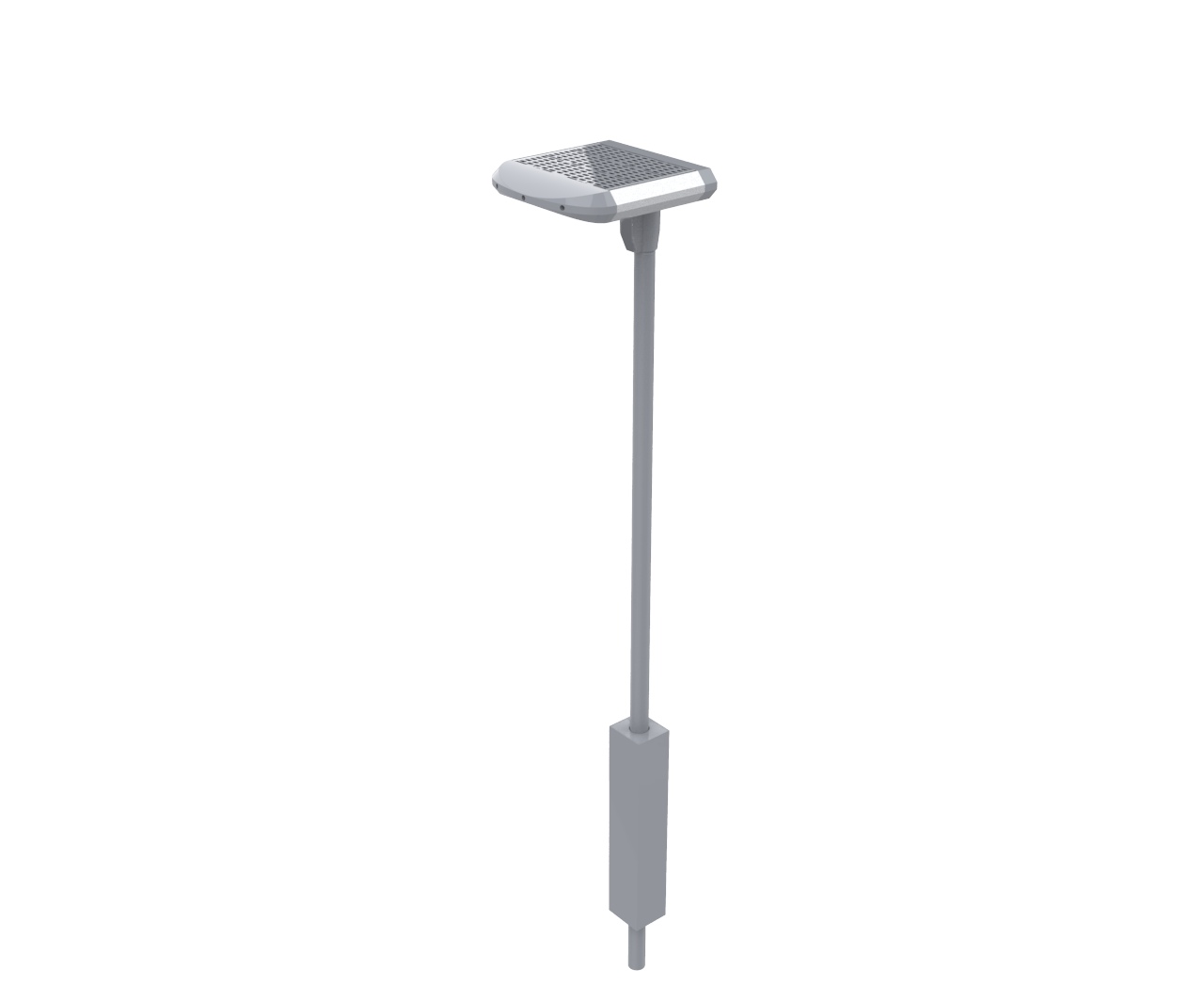

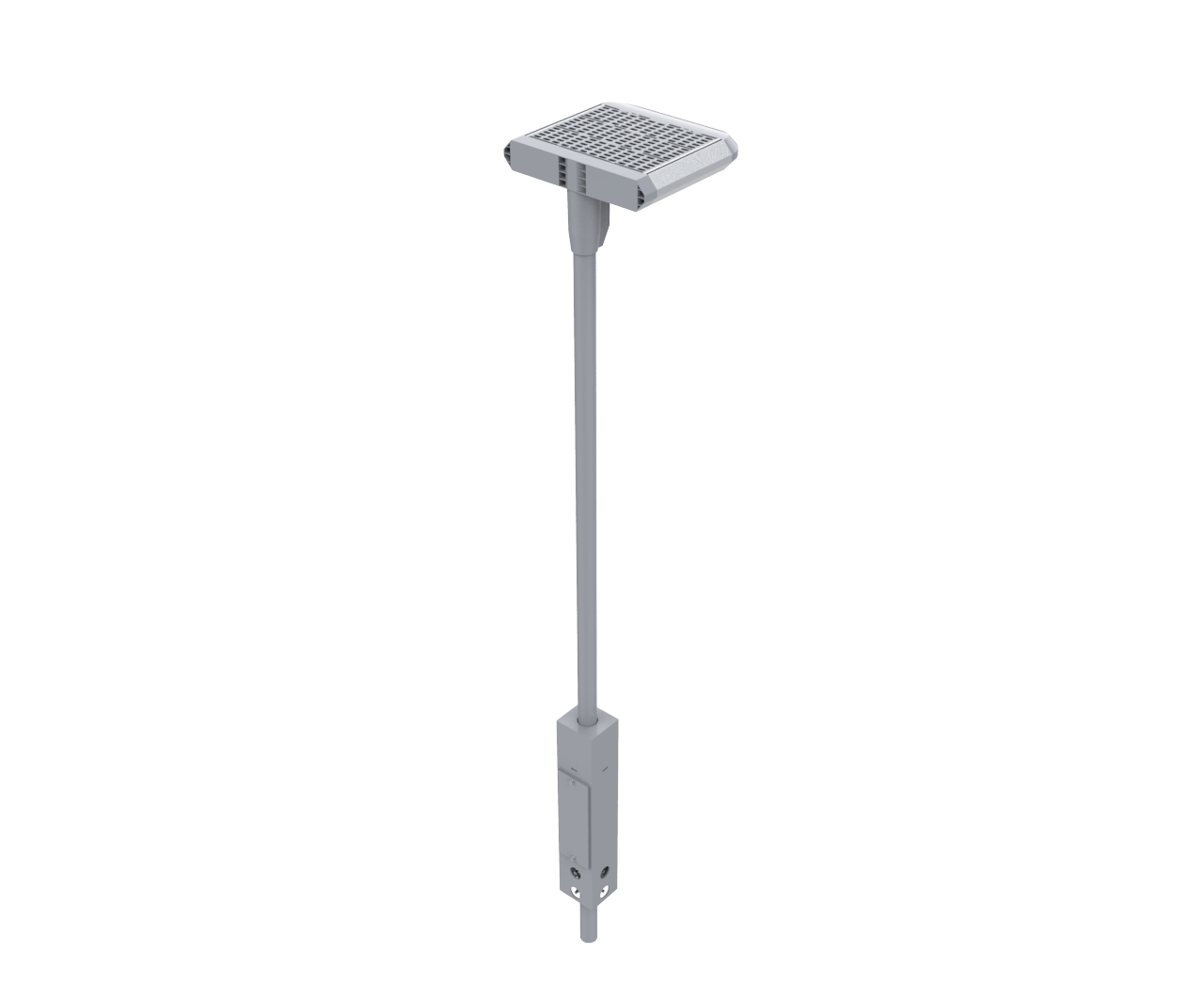

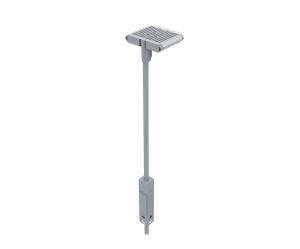

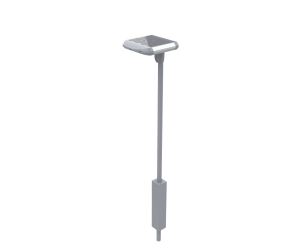

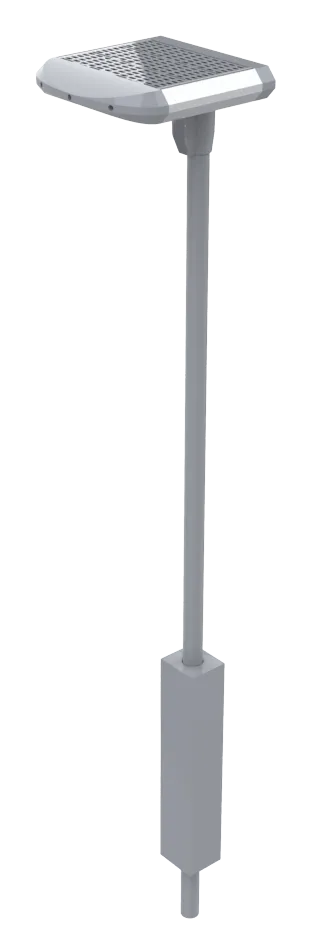

The Strata luminaire seen from a raised three-quarter angle, showing the one-piece head and pole body — Three-quarter

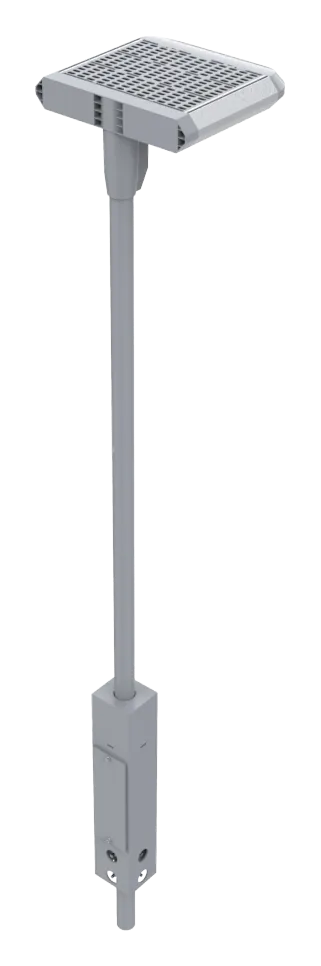

The Strata luminaire seen from below, showing the lensed pixel array and stanchion mount — From below

Specifications

Strata LED Retrofit Fixture specifications
Certifications
Hazardous location	`Class I Zone 2, Group IIC, T5`
UL	`UL 844:2012 Ed.13+R:06Oct2017`
CSA	`CSA C22.2#137:1981 Ed.1 +G1`
Performance
Lifespan	50,000hrs+ (to L70)
Ingress protection	IP66
Warranty	5 year warranty

Features

Benefits of the Strata LED retrofit fixture:

01Uses 50-70% less electricity than high intensity discharge luminaires
02Lifespan of 50,000hrs+ (to L70)& IP66
03Light weight assembly for easy handling and install
04One piece design (no separate parts)
05Remote driver allows for high temperature applications and easy & efficient replacement
06Instant on/off
07Specialty clamps available for high vibration areas
08Low inrush & operating currents
09No harmful or toxic substances are contained in this fixture
10Self cleaning pixel design
115 year warranty
